Laser crystal inner engraving machines¹ are one of the most advanced tools in precision machining². These machines use a laser to engrave intricate designs or text inside crystals or glass materials. Understanding how they work can help you unlock their potential in various applications, from personalized gifts to high-end manufacturing. Let’s explore the fundamentals and real-world applications of laser crystal inner engraving machines.

Laser crystal inner engraving machines¹ are used to engrave text, patterns, or images inside transparent materials such as crystals. The engraving process involves focused laser beams that create microscopic alterations in the crystal's internal structure. This technology offers unmatched precision and creativity, enabling the creation of unique, customized products.

Laser engraving is a process that has revolutionized industries by enabling detailed and efficient marking or engraving. In this article, we’ll dive deeper into the working principles and applications of laser crystal inner engraving machines, covering everything from how they work to their real-world uses.

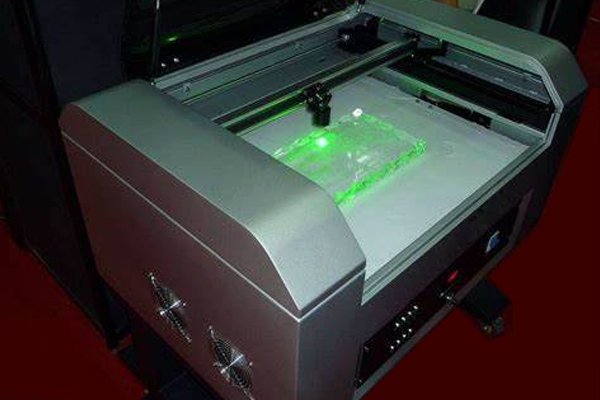

What is the working principle of laser engraving machine?

Laser engraving machines work by using a focused laser beam to etch or mark surfaces. The laser beam is emitted by a laser source, usually a CO2 or fiber laser, which is then directed onto the workpiece. When the laser strikes the surface, it heats up the material, causing it to vaporize or melt away, leaving behind an etched design.

How it works in more detail:

1. Laser Source: The laser source generates a high-powered light beam.

2. Focusing Lens: This beam is then directed through lenses to focus the laser onto a very small point.

3. Motion System: The machine uses a moving platform or stage to move the material or laser across the surface in precise patterns.

4. Control System³: The machine's computer controls the laser’s power, speed, and movement based on the design to be engraved.

These factors combined allow for the high precision necessary to engrave even the most intricate designs inside materials like crystal. The heat from the laser beam alters the material on a microscopic level, ensuring that the engraving is permanent and high-quality.

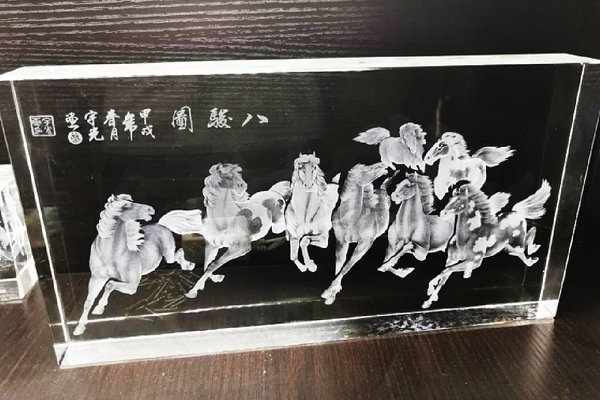

How does laser crystal engraving⁴ work?

Laser crystal engraving involves using a high-powered laser beam⁵ to etch inside solid crystal material. It’s different from surface engraving in that the laser penetrates into the crystal, allowing for designs that seem to float inside the material. The process is incredibly precise, and the depth of the engraving can be controlled to create three-dimensional effects.

Key steps in the laser crystal engraving⁴ process:

1. Laser Beam Focus: The laser is focused onto the surface of the crystal. It is typically a high-powered CO2 or fiber laser beam.

2. Material Interaction: As the laser moves through the crystal, it heats the material, causing a chemical reaction that alters the internal structure of the crystal without damaging the surface.

3. Reflection and 3D Engraving: The engravings are created inside the material, giving them a 3D effect⁶ that’s visible from different angles.

4. Finishing Process: After engraving, the crystal is often polished to remove any surface imperfections.

This method of engraving creates stunning, detailed designs that appear as though they are suspended within the crystal itself. It’s a versatile process used in both industrial applications and personal gifts.

What are the three main parts of laser engraving?

Laser engraving machines consist of several key components that work together to perform the engraving process. The three main parts that define any laser engraving system are:

1. Laser Source⁷

The laser source is the heart of the engraving machine. It generates the high-energy beam that will be used to cut or engrave the material. This can either be a CO2 laser or a fiber laser, depending on the type of engraving required.

2. Focusing Optics⁸

Focusing optics, including lenses and mirrors, direct the laser beam to a precise point on the material. The ability to focus the laser onto a very small area ensures high precision during the engraving process.

3. Motion System⁹

The motion system refers to the mechanical parts of the machine that move either the laser or the material itself. This system allows for precise control over where the laser beam is applied on the workpiece, ensuring accurate engraving based on a programmed design.

These three parts work together seamlessly, allowing for precise engraving on materials ranging from metals to crystals. By adjusting the power and speed settings, you can create a wide range of effects, from shallow surface etchings to deep engravings.

What is the application of laser engraver?

Laser engravers are widely used in various industries, from manufacturing to personal gifts. The precision and versatility of laser engraving make it suitable for a range of applications. Here are some of the most common uses:

1. Personalized Gifts¹⁰

Laser engraving is a popular method for customizing gifts, such as jewelry, glassware, or even photo frames. The ability to engrave intricate designs inside crystal or glass allows for highly personalized keepsakes.

2. Industrial Manufacturing¹¹

Laser engravers are commonly used in the manufacturing industry for labeling and marking products. They are used to engrave serial numbers, barcodes, logos, and other vital information onto products like electronics, tools, and machinery parts.

3. Medical Devices¹²

In the medical industry, laser engraving machines are used to mark surgical instruments, implants, and other medical equipment. The precision of laser engraving ensures that the markings are clear and durable.

4. Awards and Trophies

Laser engraving is a popular method for creating custom awards, trophies, and plaques. The technique allows for detailed engraving, including text, logos, and even images.

5. Art and Decorative Items

Laser crystal engraving is also used for artistic purposes, such as creating intricate designs inside clear crystals, glass sculptures, or decorative pieces. The 3D engravings inside the material create stunning visual effects.

Conclusion

Laser crystal inner engraving machines are a powerful tool that has transformed both industrial and personal engraving applications¹³. Their precision and ability to engrave intricate, detailed designs¹⁴ inside materials like crystal make them invaluable for industries ranging from manufacturing to custom gift creation.

---
